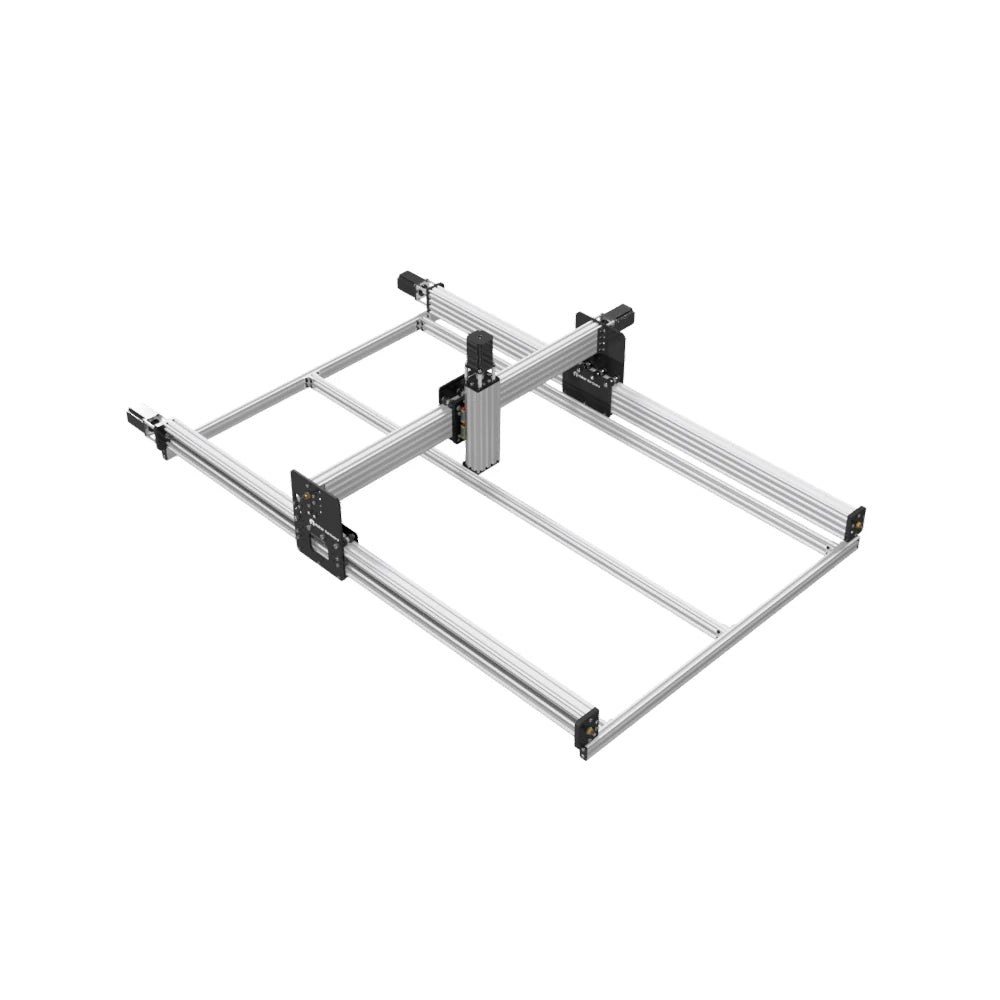

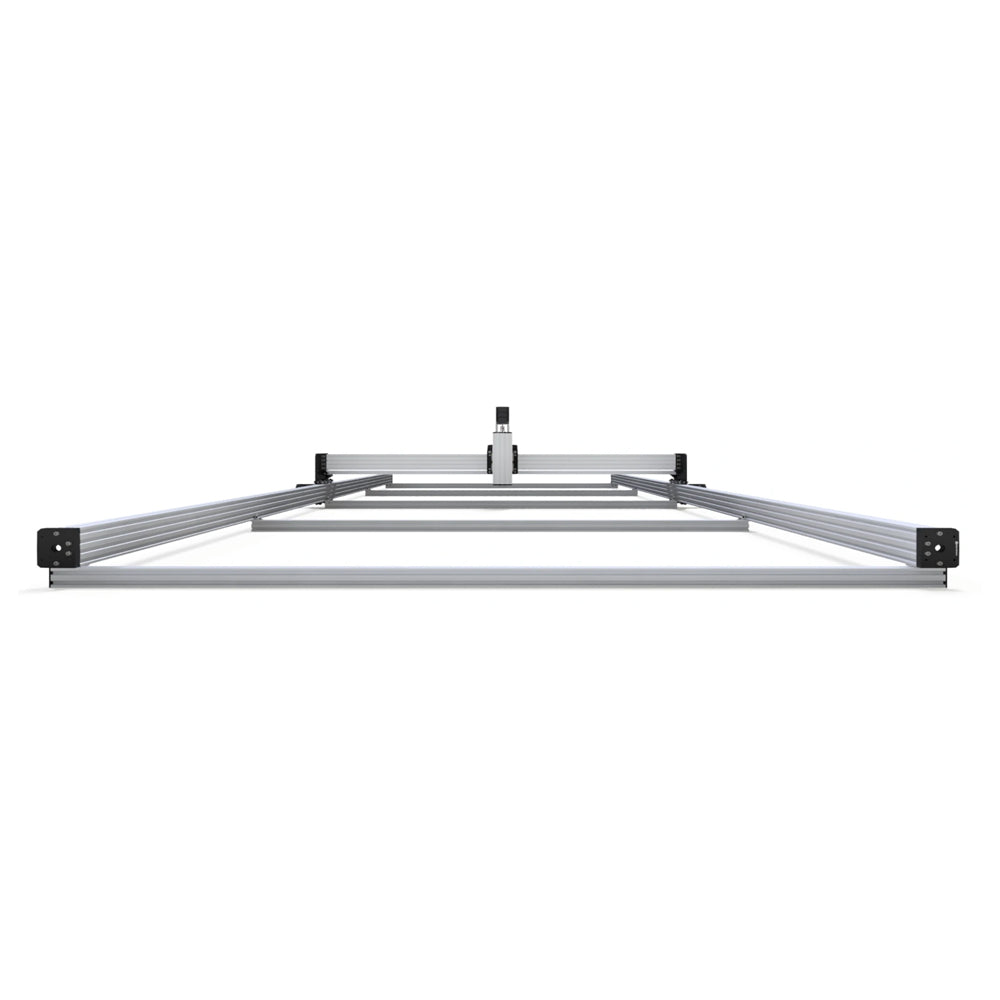

Advanced Workshop Tools CNC Mechanical Kit V3

Overview

The Advanced Workshop Tools CNC Machine is a precision-engineered upgrade built on proven design principles from industry-leading CNC systems.
This model has been refined for improved performance, reliability, and customization — setting a new benchmark for workshop versatility.

With its upgraded linear motion system, interchangeable transmission configurations, and extended axis compatibility of up to 3 meters in length, this CNC platform supports full timber sheets, composite panels, and dense material machining with unmatched rigidity.

Engineered for simplicity and accuracy, the Advanced Workshop Tools CNC arrives as a ready-to-assemble kit designed for creators, hobbyists, and small businesses who demand professional results without industrial complexity.

Key Features

• Dual Transmission Systems – Easily switch between drive configurations for your preferred cutting style and performance needs.

• Extended Axis Capability – Work on materials up to 3,000mm in length — ideal for full-sheet woodworking and fabrication.

• 4-Axis (3 + 1) System – Dual Y-axis design ensures smooth, balanced motion across every cut.

• Quick Assembly – Modular, pre-cut, and pre-drilled components allow for fast setup and precision alignment.

• Fully Modular Design – All parts are interchangeable, upgradeable, and easy to source for long-term adaptability.

Material Compatibility

Perfect for a wide range of materials, including:

• Wood, MDF, and plywood

• Foam and plastics

• Soft metals such as aluminum, brass, and copper

The Advanced Workshop Tools CNC is suitable for milling, engraving, and cutting applications where precision and reliability matter most.

Tool Mount & Spindle Compatibility

The Z-axis assembly is designed to carry up to 5 kg, supporting a wide variety of tools and attachments. It’s compatible with lasers, plasma torches, and most handheld routers (Makita, Dewalt, Bosch, etc.).

• Supports all 400W, 800W, and 1.5kW ER11 air-cooled spindles (1–4 kg)

• Optional upgrade recommended for 1.5kW ER16 air-cooled spindle – use heavy-duty X-axis C-Beam

• 1.5kW water-cooled spindles are supported with an X-axis upgrade

• 2.2kW spindles and higher are not recommended for this model

Approximate Cutting Area

Machine Size: 1000mm x 1000mm

• X-Axis: 800mm

• Y-Axis: 820mm

• Z-Axis (with 12mm wasteboard): 110mm

• Machine Footprint (not including motors): 1000mm x 1000mm

Note: Different limit switches or component configurations may slightly affect working area.
