Advanced Workshop Tools Desktop 2

Overview

Meet the Advanced Workshop Tools Desktop 2 CNC Machine — the next evolution of desktop manufacturing precision.
Starting at $3,490, this machine delivers industrial-grade power and accuracy in a compact, workshop-friendly footprint. Designed and built by experts, the Desktop 2 is twice as strong as its predecessor and delivers 30% more torque, making it one of the best-priced, high-performance CNCs in its class.

The Desktop 2 is engineered for serious makers, small businesses, and workshops that demand precision, speed, and reliability without the complexity or cost of larger systems.

Key Features

• 16mm Ball Screws – Double the size used in comparable machines for higher load capacity and accuracy.

• Integrated Closed-Loop Stepper Motors – Prevent lost steps and maintain perfect position control (unlike open-loop systems).

• High-Flex Robot Cabling – Industrial-grade 8-core shielded cable ensures long life and clean motion control.

• 8mm Powder-Coated Steel Gantry Plates – Increase rigidity and vibration resistance for cleaner cuts.

• Auto-Squaring Dual Y-Axis – Proximity switches automatically align both Y motors to maintain perfect gantry alignment.

• Class-Leading Rapids – Achieves up to 8,000 mm/min motion speeds.

Sizes & Cutting Area Options

The Desktop 2 CNC is available in four scalable rail and cutting configurations to suit your space and project size.
(Note: size is the only upgrade that cannot be added later.)

Core Specifications

• Motion Controller: GRBL CNC Controller (pre-configured and tested)

• Stepper Motors: 1.2Nm integrated closed-loop motors (+30% more torque)

• Drive System: 16mm precision ball screws

• Linear Motion: HGH 15mm linear rails and bearing blocks

• Cabling: 8-wire high-flex robot-grade cables

• Frame: 8mm steel, powder-coated in Advanced Workshop Tools navy

• Power Supply: 24V, Australian approved, energy-efficient (only 40W total draw)

• Tool Mount: 65mm standard mount (compatible with Makita trimmer or spindle)

• End Mills: $65 value starter bit set included

• Proximity Switches: X, YL, YR, and Z — auto squaring and homing to 0,0,0

Motion & Frame Engineering

The Desktop 2 is built for power and precision:

• Dual-drive Y-axis ensures smooth synchronized motion

• Industrial linear rails on all axes eliminate deflection and vibration

• Custom-machined gantry plates provide structural strength for clean, repeatable performance

• Reinforced base and robot cabling for heavy-duty workshop environments

Optional Upgrades

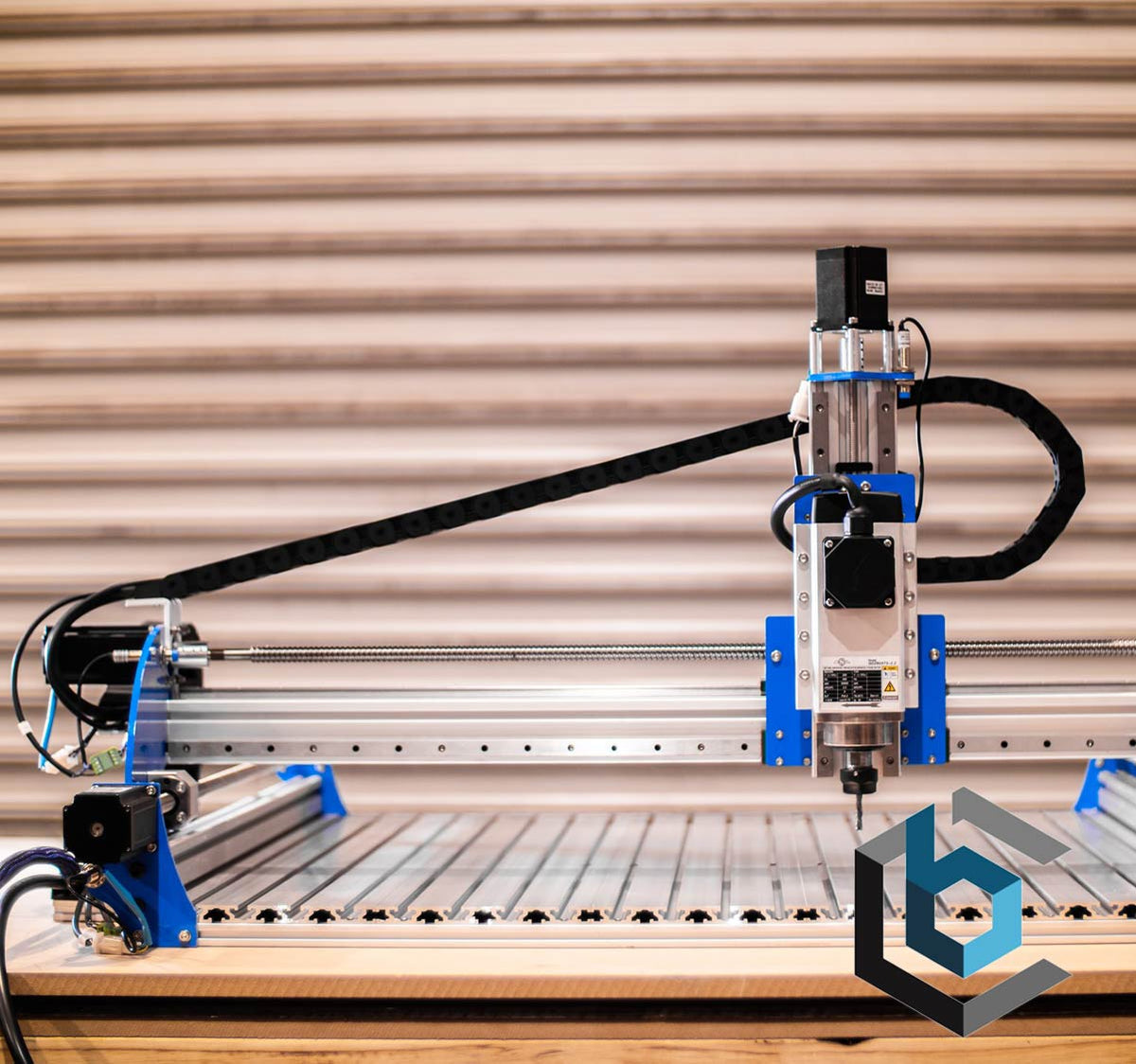

Turbo Z-Axis Upgrade (+$230)

For those cutting soft metals or demanding deeper passes, the Turbo Z upgrade features larger rail blocks and a higher-capacity ball screw for improved rigidity and feed rates.

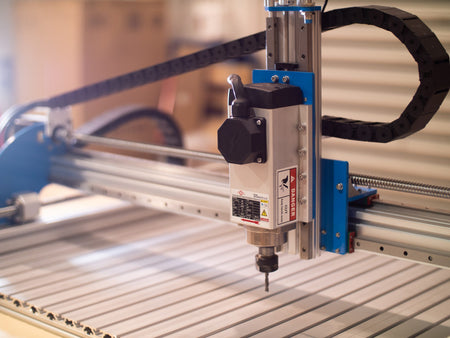

Spindle Options

Every Desktop 2 includes a 65mm mount for the Makita RT0700/CX trimmer, perfect for woodworking and light fabrication.
For increased power, torque, and accuracy, upgrade to a professional spindle setup:

Makita Trimmer Pros: Simple plug-and-play, no cooling required, low maintenance.
Spindle Pros: 2–3× more power, runout accuracy as low as 0.008mm, and quieter performance.

Laser Diode Upgrade

Add laser engraving capability and turn your CNC into a multi-function powerhouse.
Includes all required hardware (software sold separately, approx. $84 USD).

Base System Options

Select your ideal work surface:

• Build Your Own (BYO): 18mm MDF or plywood base board

• T-Slot Rails: Aluminum rails with MDF strips in between

• Full Aluminum Bed: Heavy-duty precision T-slot base

T-Slot Clamps

• 4x Nylon T-slot Clamps (+$24)

• 6x Nylon T-slot Clamps (+$36)

• 8x Nylon T-slot Clamps (+$48)

• 10x Nylon T-slot Clamps (+$60)

Z-Probe (+$30)

Reduce setup time and improve depth accuracy with a pre-calibrated aluminum puck. Automatically sets material height before each cut.

Surfacing Bit & Collet (+$30)

Add a 22mm surfacing bit to level your wasteboard, plus a 6mm collet (total value $45).

Additional Collet Options:

• 3.175mm (+$20)

• 4mm (+$20)

• 6mm (+$20)

• 8mm (+$20)

Dust Boot (+$55)

A basic dust boot compatible with 65mm and 80mm shafts helps maintain a clean workspace and extends machine life.

Why Choose the Desktop 2 from Advanced Workshop Tools

• Veteran-owned company built on discipline, craftsmanship, and precision engineering.

• Twice the structural strength and 30% more torque than previous models.

• Industrial-grade components for professional performance at an accessible price.

• Upgradable, modular design for future-proof customization.

• Backed by expert support and a commitment to helping creators build their legacy.
