Advanced Workshop Tools Ox-GEAR CNC Machine

Overview

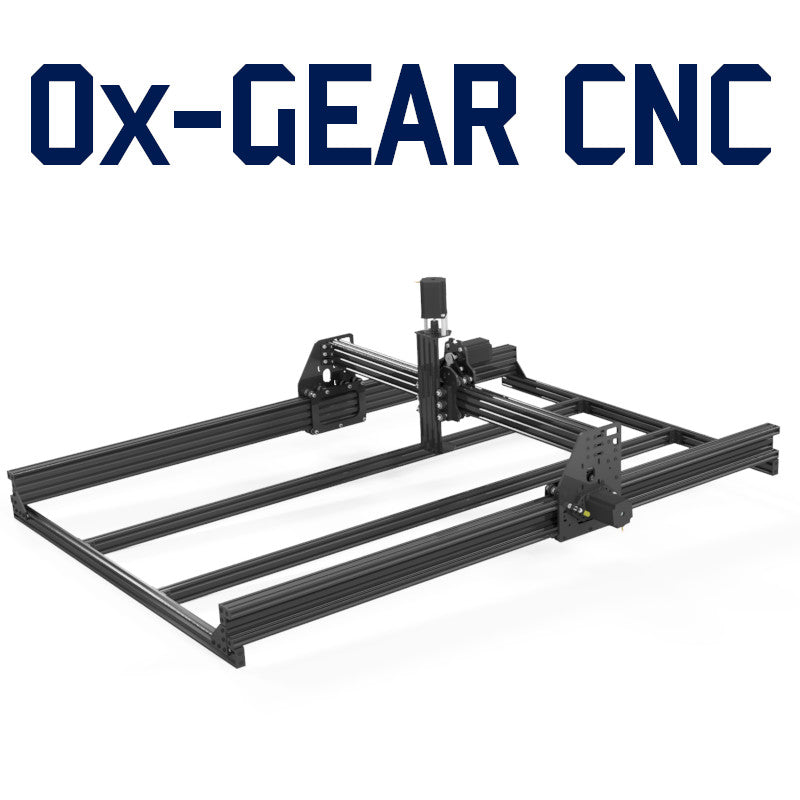

The Advanced Workshop Tools Ox-GEAR CNC Machine is a precision-engineered evolution of the classic Ox CNC — redesigned for greater strength, accuracy, and performance.
This upgraded model features an enhanced gear rack and pinion system on the Y-Axis, eliminating belt stretch and ensuring smoother, more accurate motion across long cutting distances.

With a reinforced frame capable of extending up to 1.5 meters, the Ox-GEAR delivers professional-grade stability and repeatability for serious makers, woodworkers, and small production shops.

Key Features

• Rack and Pinion Y-Axis – Upgraded gear-driven system replaces traditional belts, providing superior tension control and accuracy.

• Hybrid Motion System – Utilizes gears and racks for the Y-Axis, belts for the X-Axis, and a precision lead screw for the Z-Axis.

• Extended Frame Capacity – Frame lengths up to 1.5m accommodate full-sized materials with ease.

• C-Beam Reinforcement – The Y-Axis uses a heavy-duty C-Beam extrusion for exceptional rigidity and dust protection.

• Modular Design – All components are standard and easily replaceable, allowing simple upgrades and repairs.

Internal Gear Rack System

Developed in-house by Advanced Workshop Tools, the internal gear rack allows continuous axis expansion by butt-joining multiple racks together — providing virtually unlimited travel length.
The rack slides seamlessly into our V-Slot Linear Rail system and integrates with all standard V-Slot profiles.

A spring-loaded motor mount maintains perfect tension between gear and rack, ensuring consistent motion with minimal maintenance.
This design also keeps the gear safely enclosed, protecting it from dust and debris during operation.

Simple, Powerful, and Versatile

The Ox-GEAR CNC Machine is incredibly simple to assemble and ideal for cutting and milling:

• Wood (soft and hardwoods)

• Foam

• Plastics (HDPE, Delrin, Plexiglass)

• Soft metals such as aluminum

Its 4-axis (3 + 1) configuration provides precise multi-axis control, featuring three physical axes (X, Y, Z) plus a slave Y-axis (A-axis) for synchronized movement.

Whether you’re a professional fabricator or a hobby woodworker stepping into CNC machining, the Ox-GEAR offers the versatility, customization, and reliability you need.

Module 1.0 Gear Accuracy Table

Dimensions & Cutting Area

Travel (Cutting Area):

• X-Axis: 780mm

• Y-Axis: 775mm

• Z-Axis: 69mm (reduced to 57mm with a 12mm baseboard)

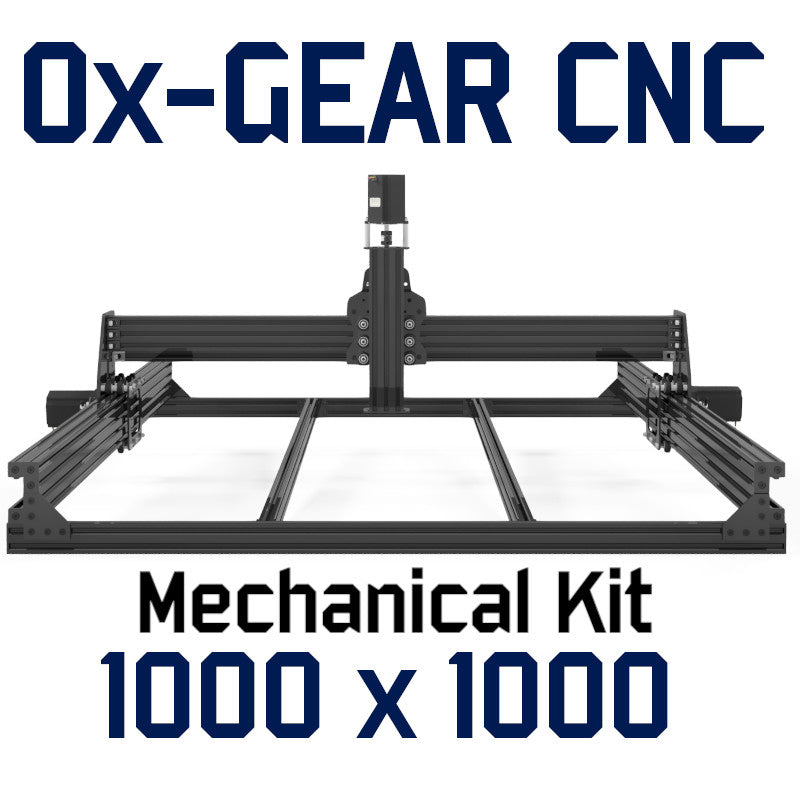

Machine Footprint: ~1,000mm x 1,000mm (excluding motors)

Tools Required for Assembly

• 3mm Allen key

• Screwdriver

• 8mm and 10mm wrenches

• Hacksaw (for trimming POM rack if needed)

• M5 tap

• Wire cutters

Why Choose the Ox-GEAR CNC from Advanced Workshop Tools

• Built for precision, durability, and long-term reliability.

• Veteran-owned company committed to craftsmanship and service.

• Modular design for easy maintenance and future upgrades.

• Perfect balance of accuracy, flexibility, and value for creators and professionals alike.
